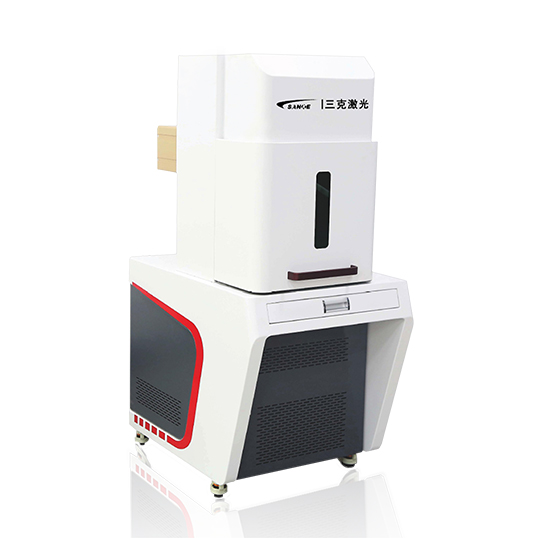

Equipment introduction:
The UV laser marking machine uses a semiconductor end-pumped laser to generate a 355 nm UV laser at a triple frequency. High photoelectric conversion rate, simple use, stable equipment, galvanometer high-precision marking lens, fine effect, 355nm output wavelength, reducing the thermal impact on the workpiece.

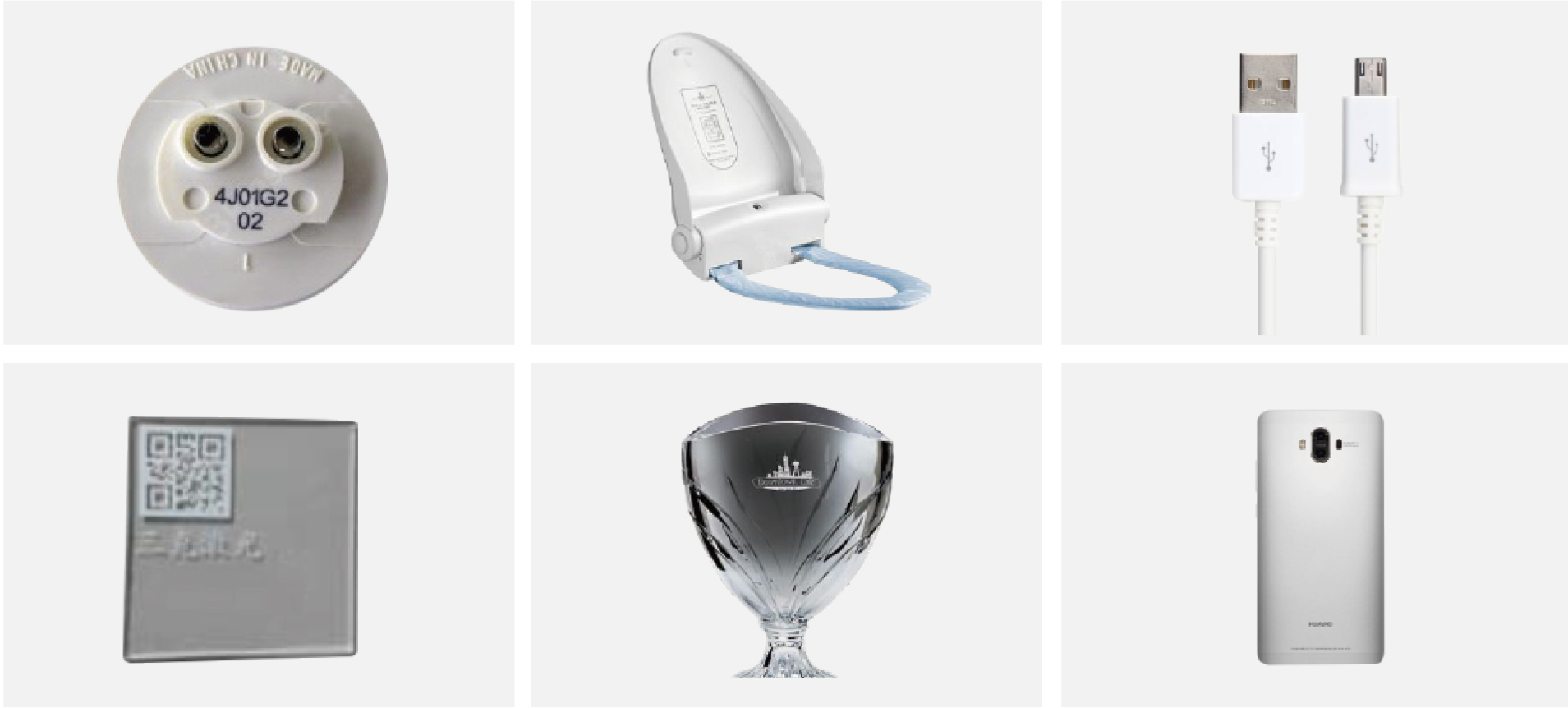

Applicable materials:

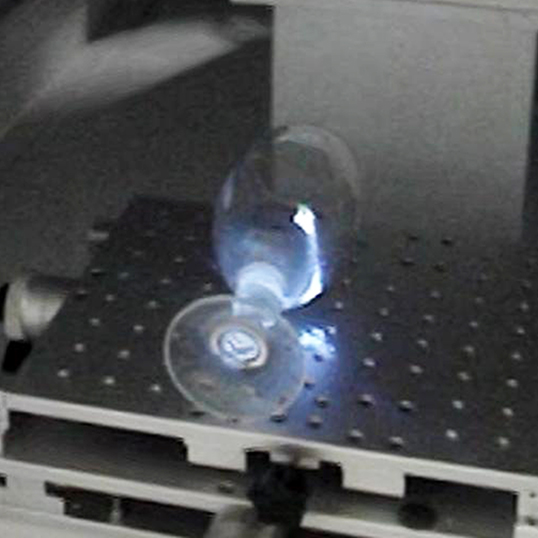

Applicable to the surface marking of glass, polymer materials, etc., micro-hole processing.
Applicable industry:
It is widely used for marking the surface of packaging bottles of food materials such as food, medicine, cosmetics, electric wires, etc.
Class I Laser enclosure.
Door with safety interlock
Full aluminum enclosure with UV safe window.
Keys for access limitations
Labels with power, wavelength and google requirements
Emission indicator
Emergency stop
| Product Name | Items | Spec and Brand | QTY | Unit |
| UV Laser Marking Machine | Laser Generator | 355nm | 1 | Pcs |
| Laser Power | Completely set power with laser generator | 1 | set | |
| Red Light System | 3K Laser | 1 | Pcs | |
| Galvanometer | Adaptation | 1 | Pcs | |
| Cooling System | Air + Water | 1 | Pcs | |
| PC | Industrial Computer | 1 | Pcs |
| Performance/Model | Unit | SK-UV3W | SK-UV5W | SK-UV8W |
| Laser Source Power | W | 3W | 5W | 8W |
| Wavelength | nm | 355nm | 355nm | 355nm |
| Min Character | mm | 0.15 | 0.15 | 0.15 |
| Repeatability Precision | mm | ±0.002 | ±0.002 | ±0.002 |
| Beam Quality | M² | ≤1.2 | ≤1.2 | ≤1.2 |
| Adjustable Frequency | KHz | 25-100 | 25-100 | 25-100 |
| Marking Area | mm | 100*100/150*150/ | 100*100/150*150/ | 100*100/150*150/ |
| 200*200(Option) | 200*200(Option) | 200*200(Option) | ||
| Marking Speed | mm/s | ≤7000 | ≤7000 | ≤7000 |
| Cooling System | cooling | Air | Water | Water |
| Voltage | power supply | 220V±5%/50Hz/5A | 220V±5%/50Hz/5A | 220V±5%/50Hz/5A |
| Machine Power Consumption | W | 500 | 600 | 800 |
