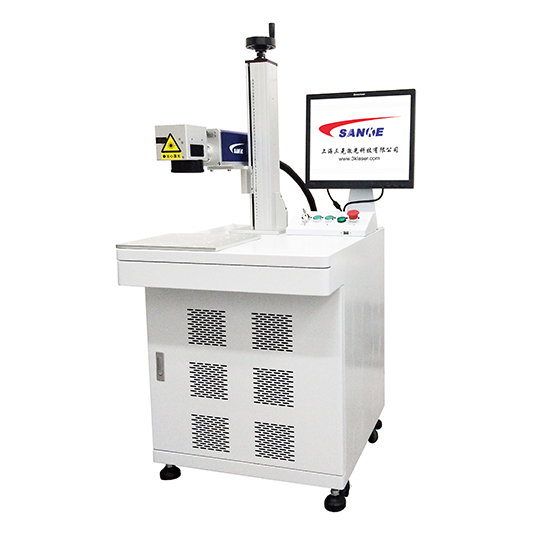

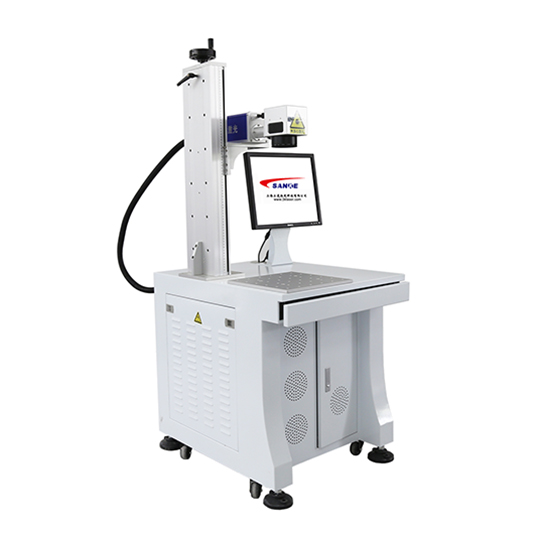

Fiber laser marking machine
  • Description
  • Config
  • Technical
  • Samples
  • Video
  • Download

Equipment introduction:

The fiber laser marking machine has stable output power, good optical mode, fast marking speed, beautiful appearance and simple operation.


Software features:

1. Can receive various BMP, JPG, DXF, PLT, AI and other format files

2. Automatically generate various serial numbers, production date, 1D code, 2D code

3. Support flight marking

4. Support rotary marking

5. Support large-area XY platform automatic segmentation marking

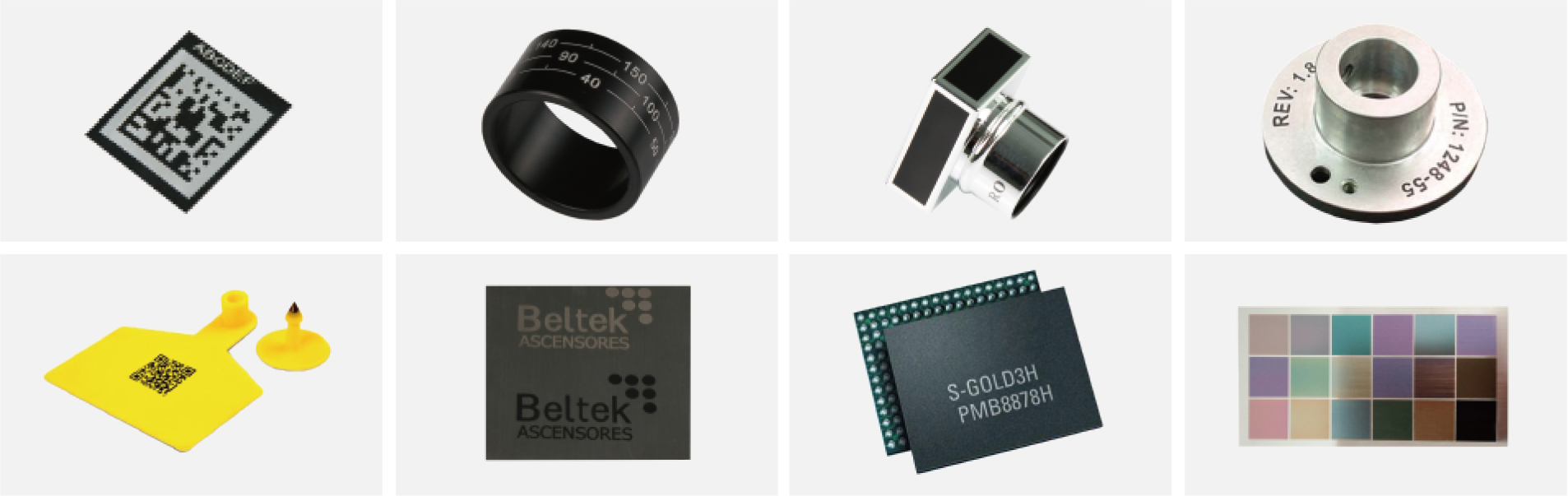

Applicable materials:

Metal and various non-metallic materials, high hardness alloys, oxides, electroplating, coating, ABS, epoxy resin, ink, ceramics, engineering plastics, etc.


Applicable industry:

Plastic transparent button, integrated circuit (IC), IC chip, digital product parts, precision machinery, jewelry, sanitary ware, measuring tools, watch glasses, electrical appliances, electronic components, hardware accessories, hardware tools, mobile communication components, steam High-precision product identification such as motorcycle parts, plastic products, medical equipment, building materials and pipes.

Product NameItemsBrandQtyRemark
laser marking machineFrame Structure3K Laser1 Setas Fig
Laser GeneratorIPG、SPI、V-Gen、 Nerfurn、JPT、MAX、Raycus(Option)1 Set
GalvanometerChina or Import (Option)1 Set
software and Control CardJCZ or Samlight1 Set
PCIndustrial Computer1 Set
Display screenLED1 Set


Performance/ModelSK-F20SK-F30SK-F50SK-F100
Output Power20W30W50W100W
Wavelength1064nm1064nm1064nm1064nm
Beam Quality M2<1.3<1.3<1.3<1.3
Laser Q-Switch Frequency20kHz~200kHz30kHz~200kHz50kHz~200kHz50kHz~200kHz
Marking Area100×100~200x200mm Option100×100~200x200mm Option100×100~200x200mm Option100×100~200x200mm Option
Marking Depth≤1mm≤1.5mm≤2mm≤2mm
Machine Power Consumption800W800W800W800W
Min line width0.03mm0.04mm0.05mm0.06mm
Repeatability Precision±0.0001mm±0.0001mm±0.0001mm±0.0001mm
Voltage220V±10% / 50Hz /2.5A220V±10% / 50Hz /2.5A220V±10% / 50Hz /2.5A220V±10% / 50Hz /2.5A
Dimension of machine750mm×600mm×1400mm750mm×600mm×1400mm750mm×600mm×1400mm750mm×600mm×1400mm
Cooling SystemAirAirAirAir
