Light bulb special laser marking machine
- Description
- Config
- Technical

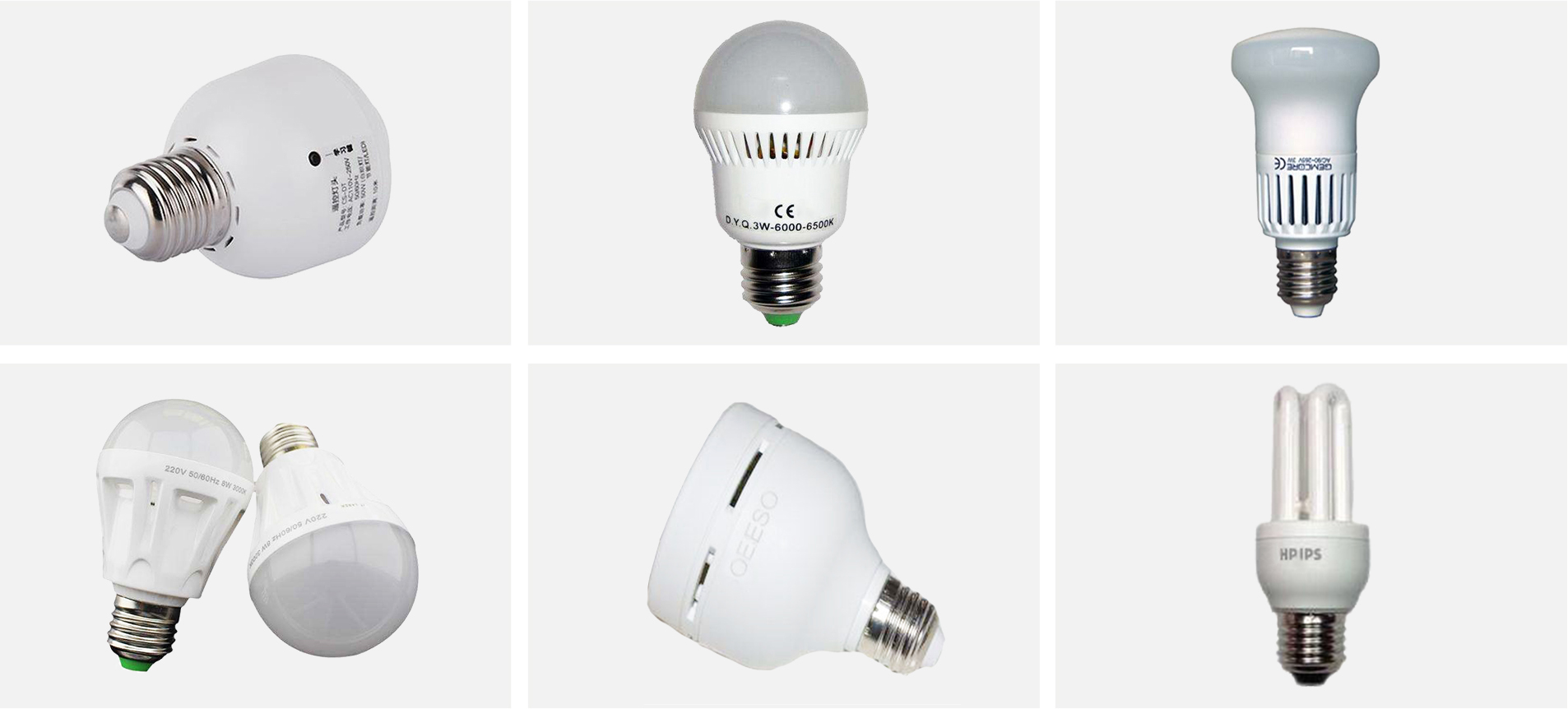

- Samples
- Video
- Download
Equipment introduction:

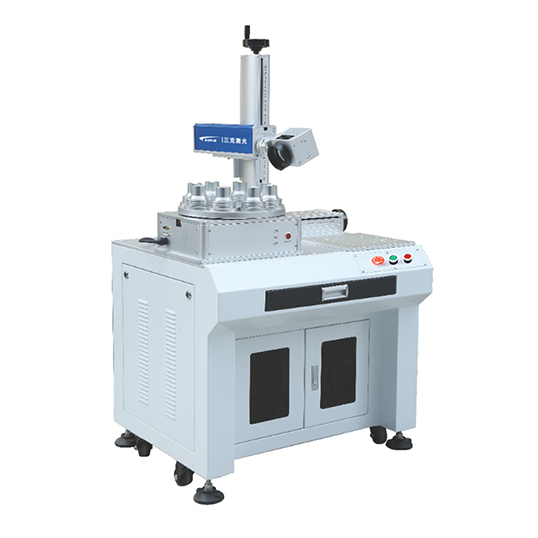

The special laser marking machine for light bulbs is a laser marking system integrated with fiber lasers. It is cooled by air cooling, which is easy to learn and has a rotating table with bulbs.
Applicable materials:
Metal and various non-metallic materials, high hardness alloys, oxides, electroplating, coating, ABS, epoxy resin, ink, ceramics, engineering plastics, etc.
Application industry:
Lighting industry.
| Product Name | Items | Brand | QTY | Remark |
| Laser Marking Machine for Bulb | Frame Structure | 3K Laser | 1 Set | as Fig |
| Laser Generator | IPG、SPI、V-Gen、 Nerfurn、JPT、MAX、Raycus（Option） | 1 Set | ||
| Galvanometer | China or Import （Option） | 1 Set | ||
| Software and Control Card | JCZ or Samlight | 1 Set | ||
| PC | Industrial Computer | 1 Set | ||
| Display screen | LED | 1 Set |
| Performance/Model | SK-F20 | SK-F30 | SK-F50 | SK-F100 |
| Laser Output Power | 20W | 30W | 50W | 100W |
| Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
| Beam Quality M2 | ＜1.3 | ＜1.3 | ＜1.3 | ＜1.3 |
| Q-Switch Frequency | 20kHz~200kHz | 30kHz~200kHz | 50kHz~200kHz | 50kHz~200kHz |
| Marking Area | 100×100~200x200mm (Option) | 100×100~200x200mm(Option) | 100×100~200x200mm(Option) | 100×100~200x200mm(Option) |
| Marking Depth | ≤1mm | ≤1.5mm | ≤2mm | ≤2mm |
| Machine Consumable Power | 800W | 800W | 800W | 800W |
| Min line width | 0.03mm | 0.04mm | 0.05mm | 0.06mm |
| Repeatability Precision | ±0.0001mm | ±0.0001mm | ±0.0001mm | ±0.0001mm |
| Voltage | 220V±10% / 50Hz /2.5A | 220V±10% / 50Hz /2.5A | 220V±10% / 50Hz /2.5A | 220V±10% / 50Hz /2.5A |
| Machine Dimension | 750mm×600mm×1400mm | 750mm×600mm×1400mm | 750mm×600mm×1400mm | 750mm×600mm×1400mm |
| Cooling System | Air | Air | Air | Air |
