CO2 Laser Marking Machine
  • Description
  • Config
  • Technical
  • Samples
  • Video
  • Download

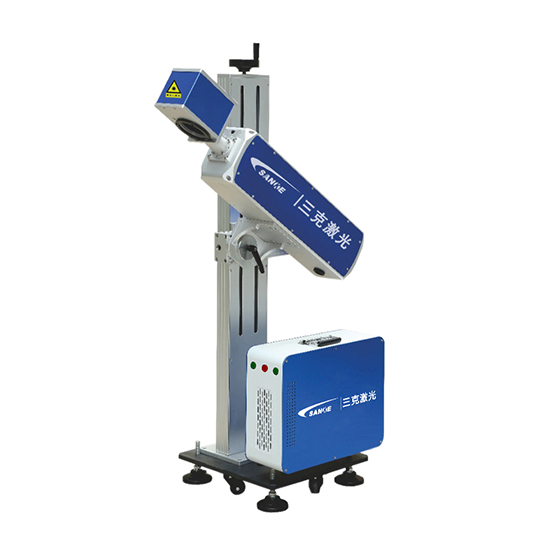

Equipment introduction:

The CO2 laser marking machine uses a CO2 RF laser and a high-speed scanning galvanometer system. The whole machine system has high marking precision, high speed and stable performance, and can work continuously. It can be directly applied to large-scale online processing flow production line.


Features:

◆ Fully enclosed maintenance-free laser optical system, no need to adjust, ready to use.

◆ High-precision, high-speed marking performance with clear marking.

◆ With WINDOWS interface, it can be compatible with files exported by various software such as CORELDRAW, AUTOCAD, PHOTOSHOP. Support PLT, AI, DXF, BMP and other documents, directly use SHX, TTF fonts, support automatic coding, serial number, batch number, date, barcode and QR code marking.

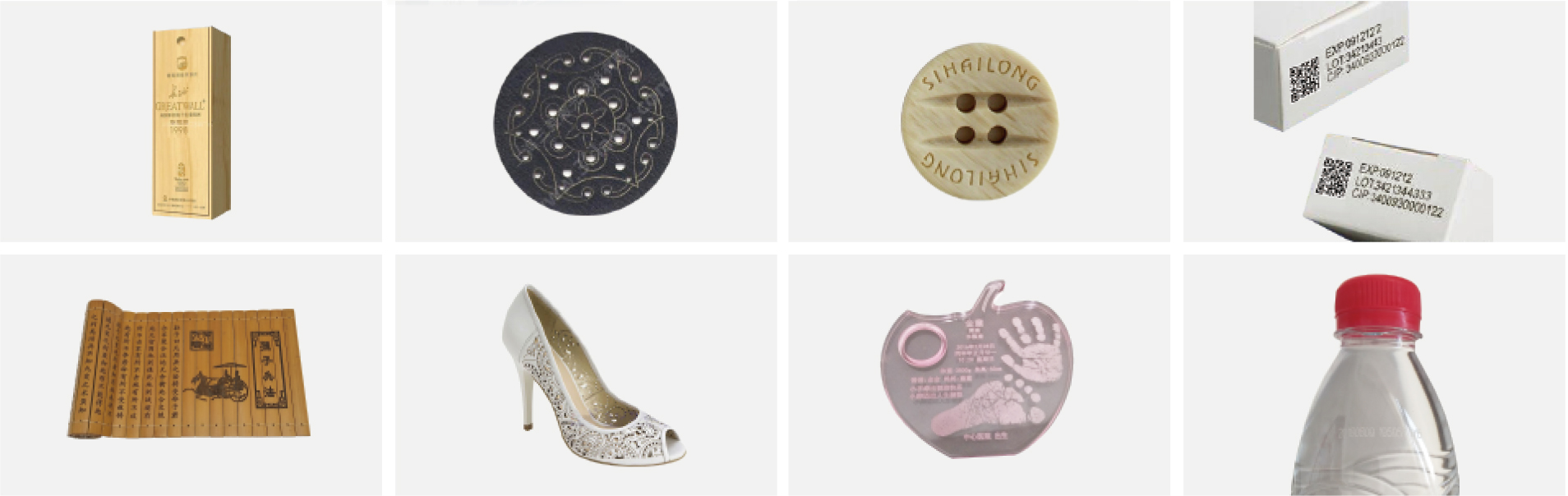

Applicable materials:

Suitable for most non-metallic materials, such as glass, paper, organic materials, acrylic, plastic, epoxy resin, etc.


Application industry:

Electronic components, medicine, various food, beverage packaging, craft gifts and other industries.

Product NameItemsBrandQTYRemark

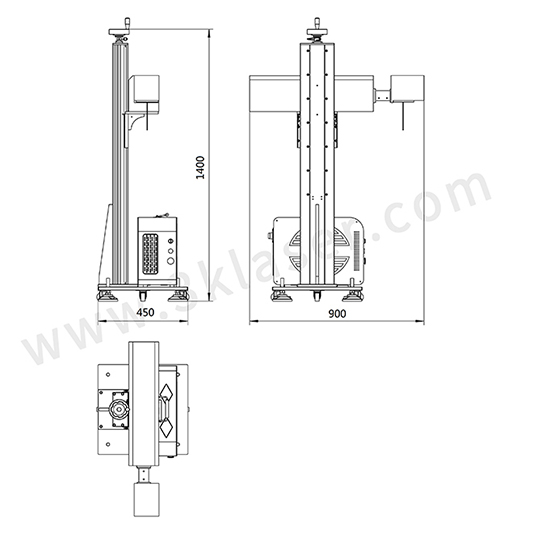

CO2 Laser Marking MachineFrame Structure3K Laser1 Setas Fig
Laser GeneratorCoherent、Synrad、China(Option)1 Set
GalvanometerChina or Import(Option)1 Set
Software and Control CardStatic or Dynamic1 Set
PCIndustrial Computer1 Set
Display screenLED1 Set
Performance/ModelSK-C10SK-C30SK-C60SK-C100
Laser Power10W30W60W100W
Wavelength10600nm10600nm10600nm10600nm
Min line width0.1mm0.1mm0.1mm0.1mm
Repeatability Precision±0.003mm±0.003mm±0.003mm±0.003mm
Beam Quality≤1.2≤1.2≤1.2≤1.2
Min Character0.2mm0.2mm0.2mm0.2mm
Marking Area110*110/200*200/400*400mm(Option)110*110/200*200/400*400mm(Option)110*110/200*200/400*400mm(Option)110*110/200*200/400*400mm(Option)
Marking Speed≤7000mm/s≤7000mm/s≤7000mm/s≤7000mm/s
Cooling SystemAirAirAirWater
Voltage220V±10%/50Hz/5A220V±10%/50Hz/5A220V±10%/50Hz/5A220V±10%/50Hz/5A
