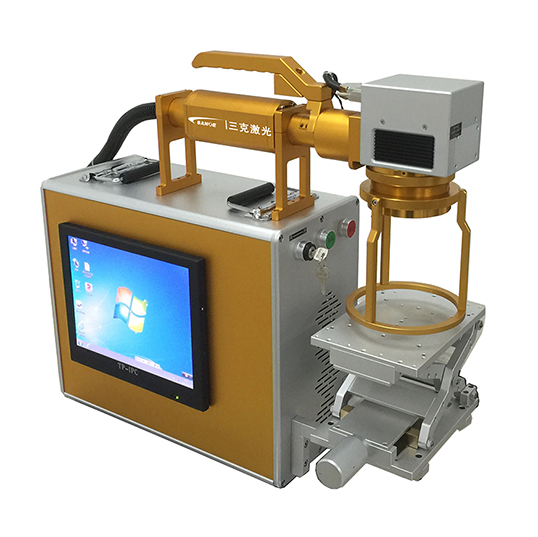

Handheld fiber laser marking machine
  • Description
  • Config
  • Technical
  • Samples
  • Video
  • Download

Equipment introduction:

The main features of the hand-held fiber laser marking machine are small and convenient. It can be operated by hand and can laser mark large mechanical parts. It can be widely used in large equipment manufacturing industries such as railroad tracks, hubs, generators and steam turbine motors. , engines, bearings, shipbuilding, large molds. The hand-held laser marking machine can be flexibly machined around the parts.


Features:

1. The hand-held laser marking machine is equipped with a universal clamping frame, which can also be placed on the clamping frame for various heights and directions;

2, there are two convenient fixed focal length modes; can be fine-tuned precisely;

3, marking software can be compatible with Coreldraw, AutoCAD, Photoshop and other software files; support PLT, PCX, DXF, BMP, etc., can directly use SHX, TTF font; support automatic coding, print serial number, batch number, date, barcode, two Dimension code, automatic jump number, etc.

4, convenient maintenance, small size, saving floor space.


Applicable materials:

Metal and various non-metallic materials, high hardness alloys, oxides, electroplating, coating, ABS, epoxy resin, ink, ceramics, engineering plastics, etc.

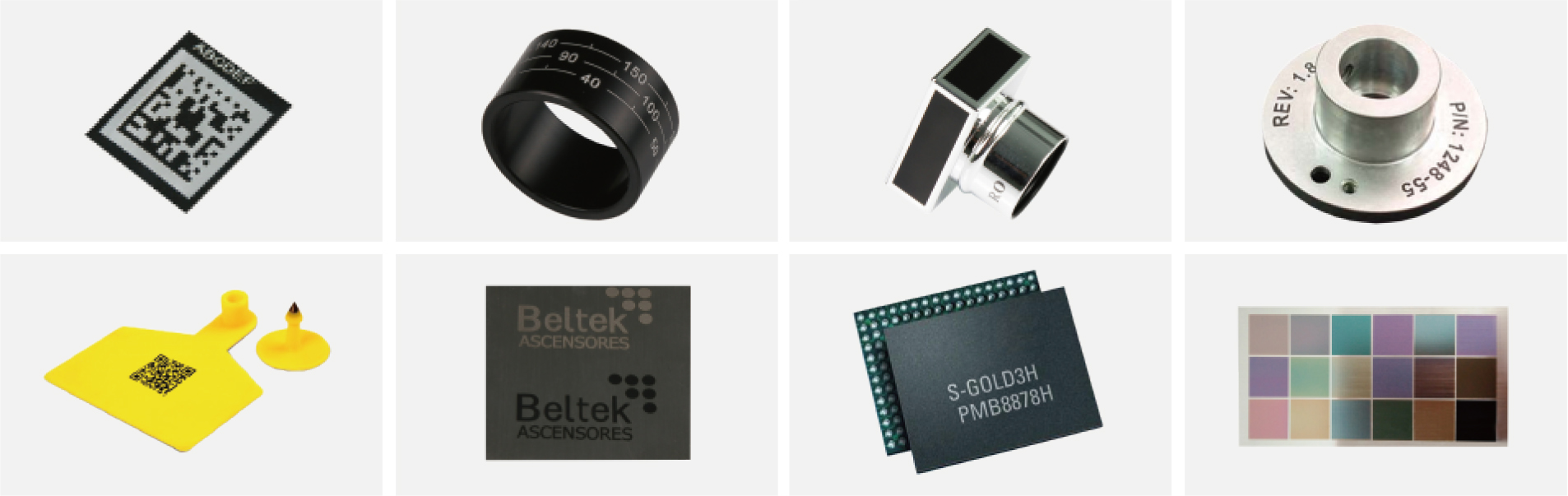

Application industry:

Plastic transparent button, integrated circuit (IC), IC chip, digital product parts, precision machinery, jewelry, sanitary ware, measuring tools, watch glasses, electrical appliances, electronic components, hardware accessories, hardware tools, mobile communication components, steam High-precision product identification such as motorcycle parts, plastic products, medical equipment, building materials and pipes.


Product NameItemsBrandQtyRemark

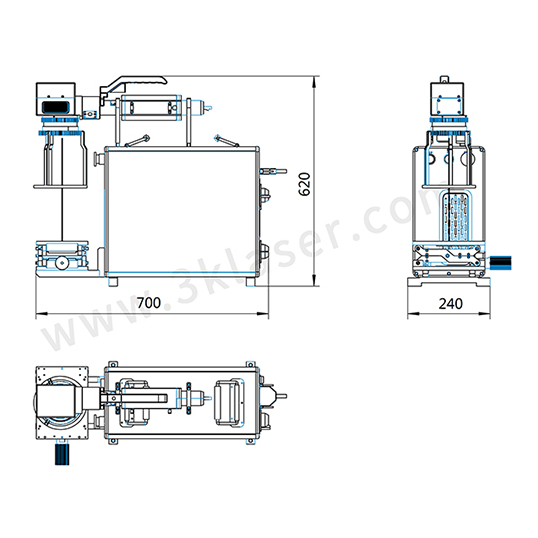

Handhold laser marking machineFrame Structure3K Laser1 Setas Fig
Laser GeneratorIPG、SPI、V-Gen、 Nerfurn、JPT、MAX、Raycus(Option)1 Set
GalvanometerChina or Import (Option)1 Set
software and Control CardJCZ or Samlight1 Set
PCIndustrial Computer1 Set
Display screenLED1 Set


Performance/ModelSK-F20SK-F30SK-F50SK-F100
Output Power20W30W50W100W
Wavelength1064nm1064nm1064nm1064nm
Beam Quality M2<1.3<1.3<1.3<1.3
Laser Q-Switch Frequency20kHz~200kHz30kHz~200kHz50kHz~200kHz50kHz~200kHz
Marking Area100×100~200x200mm Option100×100~200x200mm Option100×100~200x200mm Option100×100~200x200mm Option
Marking Depth≤1mm≤1.5mm≤2mm≤2mm
Machine Power Consumption800W800W800W800W
Min line width0.03mm0.04mm0.05mm0.06mm
Repeatability Precision±0.0001mm±0.0001mm±0.0001mm±0.0001mm
Voltage220V±10% / 50Hz /2.5A220V±10% / 50Hz /2.5A220V±10% / 50Hz /2.5A220V±10% / 50Hz /2.5A
Dimension of machine750mm×600mm×1400mm750mm×600mm×1400mm750mm×600mm×1400mm750mm×600mm×1400mm
Cooling SystemAirAirAirAir
