Auto glass marking
  • Description
  • Config
  • Technical

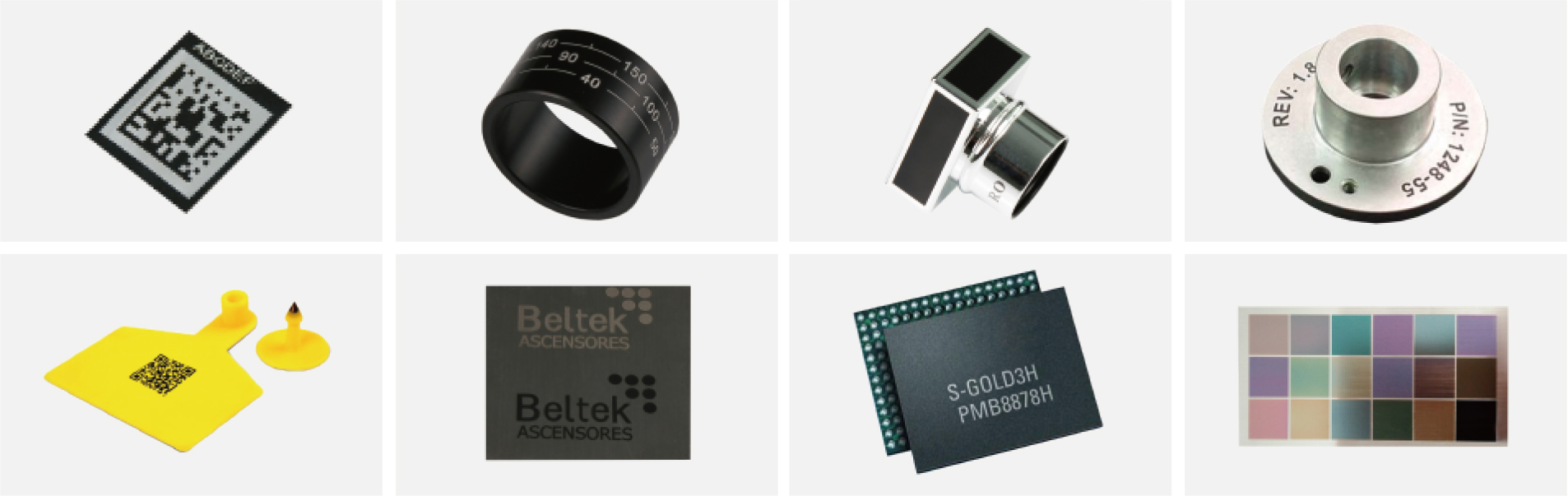

  • Samples
  • Video
  • Download

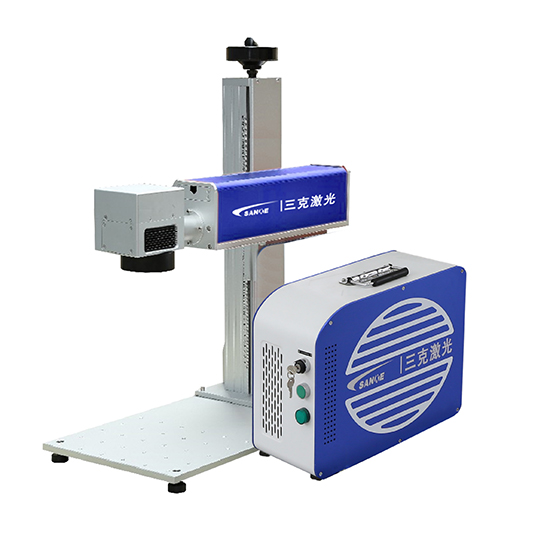

Introduction:

This machine adopts highly integrated fiber laser and high speed scanning galvanometer. Output power is stable, optical mode is good, suitable for precision marking; small size, all air-cooled, consumable, maintenance-free, can meet the needs of industrial continuous work; can be matched according to the requirements of imported or domestic laser.

Feature:

■ It can process a variety of metal and non-metal materials.

■ Non-contact processing, no damage to the product, no tool wear, good marking quality.

■ Good beam quality,less material loss, and the processing heat affected zone is small.

■ High processing efficiency, computer control, easy to achieve automation.

Application:

Widely used in mobile communications,electronic components,household appliances,watch glasses,aerospace,auto parts,precision instruments,medical devices,jewelry,hardware and other industries.

Materials:

Hard alloys, plated products, coated products, ABS, epoxy resin,ink coated products, ceramics, engineering plastics and so on.

Product NameItemsBrandQtyRemark
laser marking machineFrame Structure3K Laser1 Setas Fig
Laser GeneratorIPG、SPI、V-Gen、 Nerfurn、JPT、MAX、Raycus(Option)1 Set
GalvanometerChina or Import (Option)1 Set
software and Control CardJCZ or Samlight1 Set
PCIndustrial Computer1 Set
Display screenLED1 Set



Performance/ModelSK-F20SK-F30SK-F50SK-F100
Output Power20W30W50W100W
Wavelength1064nm1064nm1064nm1064nm
Beam Quality M2<1.3<1.3<1.3<1.3
Laser Q-Switch Frequency20kHz~200kHz30kHz~200kHz50kHz~200kHz50kHz~200kHz
Marking Area100×100~200x200mm Option100×100~200x200mm Option100×100~200x200mm Option100×100~200x200mm Option
Marking Depth≤1mm≤1.5mm≤2mm≤2mm
Machine Power Consumption800W800W800W800W
Min line width0.03mm0.04mm0.05mm0.06mm
Repeatability Precision±0.0001mm±0.0001mm±0.0001mm±0.0001mm
Voltage220V±10% / 50Hz /2.5A220V±10% / 50Hz /2.5A220V±10% / 50Hz /2.5A220V±10% / 50Hz /2.5A
Dimension of machine750mm×600mm×1400mm750mm×600mm×1400mm750mm×600mm×1400mm750mm×600mm×1400mm
Cooling SystemAirAirAirAir
